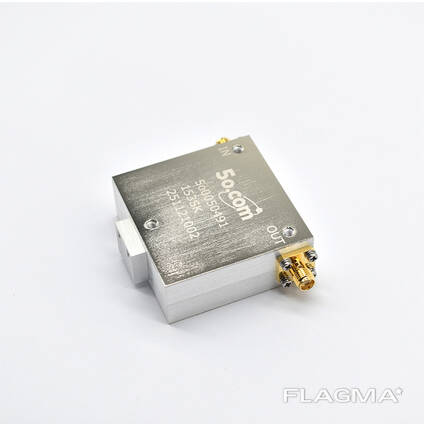

1.5 to 3.0GHz RF Coaxial Isolator High Isolation Low Loss SMA Connector for RF Protection
1 / 4
Posted:
9 December 2025, 15:31
ID: 4149
$90/piece
Delivery terms:
EXW
Shenzhen
Kelly Hu
manager
Description
Product Features:
Model Number: 5o0050491153SK
Frequency Range: 1.5 to 3.0GHz
Isolation Min: 17dB
VSWR Max: 1.35
Insertion Loss Max: 0.5dB
Connector Type: SMA-K
Forward Power: 100W
Reverse Power: 30W
Impedance: 50 ohm
Operating Temperature: 0 to plus 70 degrees C
Storage Temperature: minus 55 to plus 125 degrees C
Dimensions: 50.8 mm x 49.5 mm x 19 mm
Applications:
RF power amplifier protection
Digital satellite and mobile communication systems
Medical communication and security equipment
Military space and commercial applications
Test and measurement setups requiring signal integrity
Recommended Matching Products:
RF power amplifiers
Transceiver modules
Base station equipment
Test and measurement instruments
Radar and satellite communication systems
Additional Notes:
Can be configured in dual or multiple junctions for higher isolation
Connector options available including SMA Male Female N Male Female etc
Custom frequencies available upon request based on user requirements
Backed by a one year standard warranty
Designed for reliable performance in commercial industrial and defense applications
