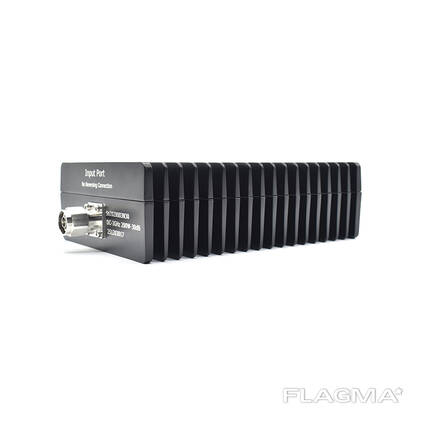

200W DC-6GHz N-Type Coaxial Attenuator High Power Broadband for Demanding RF Systems
1 / 4
Posted:
10 December 2025, 12:06
ID: 4150
$110/piece
Delivery terms:
EXW
Shenzhen
Kelly Hu
manager
Description
Product Features:
Model Number: 5o2020003N Series
Frequency Range: DC to 6GHz (DC to 3GHz for 5o2020003N6 and below models)
Attenuation Value: 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB 40dB
Attenuation Tolerance: plus or minus 0.6dB to plus or minus 2.0dB depending on model
VSWR Max: 1.20 to 1.35 depending on model
Rated Power: 200W
Connector Type: N-J-K
Operating and Storage Temperature: minus 55 degrees C to plus 125 degrees C
Dimensions: approximately 245.0 mm x 200.0 mm x 145.0 mm varies by model
Impedance: 50 ohm
Applications:
Wireless communication systems such as 5G base stations and microwave links
Radar and satellite communication systems
Test and measurement equipment including signal generators spectrum analyzers and power meters
Electronic countermeasures and harmonic suppression systems
Aerospace and defense electronics
Research and development labs and RF simulation platforms
Characteristics
Product code
5o2020003N
The owner of the ad has the most up-to-date information.
