Equipment for the production of concrete products and pillars

Equipment for the production of precast concrete products, pillars, and piles.

Product forming unit.

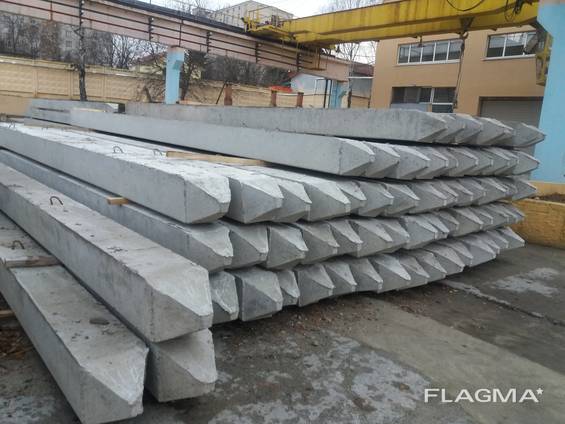

Pile/pillar molds are specially designed and manufactured to produce the same product with high productivity.

These combined molds for foundation piles can be manufactured in any size required by customers.

In this case, the battery mold under consideration would be 15 m long and would have 5 strips for the SV95 model and 4 strips for the CB105 model, producing piles with sections measuring 165 x 240 mm (165 mm) and 200 x 180 mm (190 mm).

The mold features neoprene-lined, silent blocks to absorb vibration, minimizing its transmission to the factory foundations. The chassis is constructed of structural tubing for maximum rigidity, while the substructure features laminated steel sections. Battery molds typically have 6 mm thick sheets for surface contact with the concrete.
The mold contains a vibration system consisting of air vibrators located under the table.

The mold blocks are similar to column molds; once the required separators are positioned to produce the desired pile length, the reinforcement is attached and the concrete is poured.

Once the concrete is placed, the separators are removed, and the slabs are removed and stored using a balancing beam and crane.
This type of block battery can also be equipped with a heating system designed according to customer requirements.

Pneumatic vibrators
Vibration frequency: 13,000 min-1
Centrifugal force: 5413 kg / 53.10 kN
Noise level: 88 dB (A)
Quantity: 6

Equipment can be manufactured according to customer specifications.

12-month warranty
