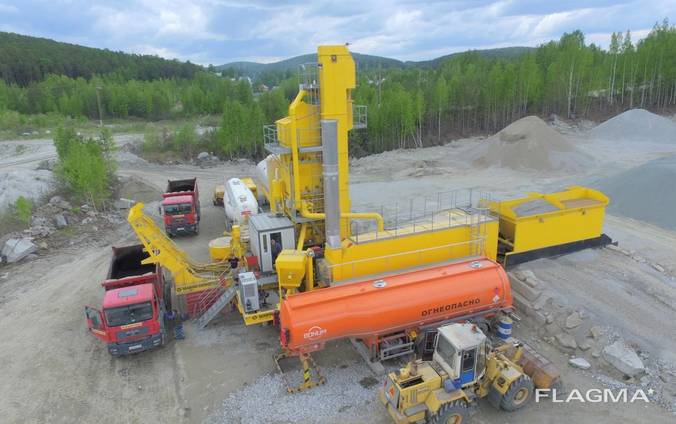

Used Marini 120-160 tch mobile asphalt plant, 2014

Used Ermont-Marini Roadbatch RB 160 Mobile asphalt mixing plant, 70-160 t/h, 2014 (France).

Used: 50,000 tons.

Plant Specifications and Equipment:

1. Road Semi-Trailer
Triple Fixed Axle
6 Telescopic Supports
1 Aggregate Dosing
4 Aggregate Compartments 3.5 m x 1.6 m
Loading Capacity 35 t at 1.6% Density
Sand Compartment Vibrator
4 Volumetric Extractors
Conveyor Belt Width 400 mm
4 Individual Gear Motors
Variable Speed ​​from 8 t/h to 80 t/h

2. Drum Dryer
Nominal Capacity 125 t/h with 5% Moisture Content and 140°C
Mixing Zone Diameter 1.65 m
Drying Zone Diameter 1.90 m
4 Bearing Rollers
2 Holding Rollers
Driven by a 30 kW Gear Motor

3. Burner
Heating Capacity 500 kcal/h h
Mazut No. 2
High-pressure pump 30 bar
Combustion range control drive
Fan 12,750 m³/h, power 30 kW

4. Dust filter
Filtration area: 450 m²
V-shaped loading hopper with inspection doors
Rotor cleaning
Power 75 kW/h
Feed system 8 m

1 air compressor
Capacity 57 m³/h
Power 7.5 kW

1 road semi-trailer
Triple fixed axle
8 telescopic supports
1 hot lift

5. Mixing tower
Screen, 3 spare hoppers
Dump valve
1 2-ton hopper, opening of two pneumatic doors
Three weighing load cells
1 double-shaft mixer:
2,000 kg/batch - 2 gear motors

6. Dosing Bitumen
200-liter weigh platform mounted on 2 load cells for injection into a gravity mixer
Bitumen pump capacity: 30 m³/h
7.5 kW power

Three-way valve for bitumen injection
1 Bucket elevator
1 Loading hopper: 1.5 m
1 Control unit
Dimensions: 2.00 m x 3.00 m
Air conditioning
1 Automation system
1 Ventilated industrial calculator
1 Input and output rack
1 PC, compatible with keyboard
1 20-inch screen
CE compliant
1 Loading skip
1 Capacity: 2 tons for 45-second cycles
1 Power winch: 37 kW
1 Direct loading

Storage tanks
1 20-ton storage tank
Transportable silo with bulkhead

1 Filler silo
Two compartments: 27 m³

1 Mobile tank For storing bitumen and fuel oil
1 Burner
1 Bitumen Circulation Pump
1 Bitumen Spray Pump
1 Oil Circulation Pump

It can process up to 30% RAP (Recycled Asphalt) at throughput rates ranging from 70 to 160 t/h.
