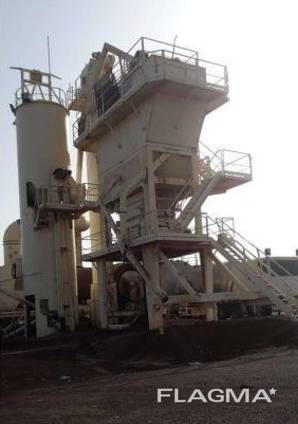

Used mobile asphalt plant Intrame UM160 t/h, 2000

Used Intrame UM 160 Mobile Asphalt Plant, 2000 (160-180 t/h), Spain.

Description of the used mobile asphalt plant
Intrame UM 160 (160-180 t/h), 2000
Type UM 260
Serial number 2680
Capacity:
160 t/h (3.0% moisture)
180 t/h (1.5% moisture)

Technical specifications and parameters:
Cold aggregate bins - 5 units * 10.5 m³ each,
with corresponding belt feeders. 1 belt collector, 800 mm strip, 7.5 CV (5.5 kW) motor
Drying drum diameter: 2200 mm
Length: 9000 mm
The cylinder is lined with 80 mm of mineral wool to prevent heat loss
Driven by four motorized rollers, each equipped with a 30 hp (22.5 kW) electric motor.

Liquid Fuel Burner
Medium pressure, no refractory required.
Heating capacity: 18,000,000 kcal/hour.
Ready to burn heavy fuel oil.
Equipped with a built-in fuel pump and a former driven by a 60 hp (44 kW) electric motor. Dosing and Mixing Unit
A horizontal screen measuring 1.80 x 5.48 m with two troughs for filtering in four sizes, driven by two 20 CV (14.7 kW) electric motors each.
Enclosed in a watertight enclosure equipped with a dust suction channel.

Hot Material Hoppers:
Four compartments with pneumatically operated discharge gates.
Capacity: 20 m³ (30 t).
A 4,500 kg aggregate hopper for the combined weighing of four aggregate sizes.
Weighed using a load cell.
Pneumatically actuated discharge valve.
A horizontal screen measuring 1.80 x 5.48 m with two troughs for rejecting four sizes, driven by two 20 CV (14.7 kW) electric motors each.
Enclosed in a waterproof enclosure with a dust suction channel.

Mixer
Low-speed and dual axles, replaceable trays and liners.
Mixing capacity: 2,500 kg
Powered by a 100 hp (74.5 kW) electric motor.
Pneumatic discharge protection. With a hot oil chamber.
With hinged doors for easy inspection and replacement of blades, brackets, platforms, ladders, and handrails.
Finished asphalt hopper – 50 tons.

JET Surface bag filter 600 m2 and 430 filter bags.
Mineral additive silos:
2 units*, 50 tons, with pneumatic loading pipes
Computer control unit - Control chamber, computerized workstation.

The plant has been fully serviced and is in excellent working condition. The service was carried out strictly according to schedule and on time.

The seller offers assistance with delivery and installation supervision at the Buyer's site.
