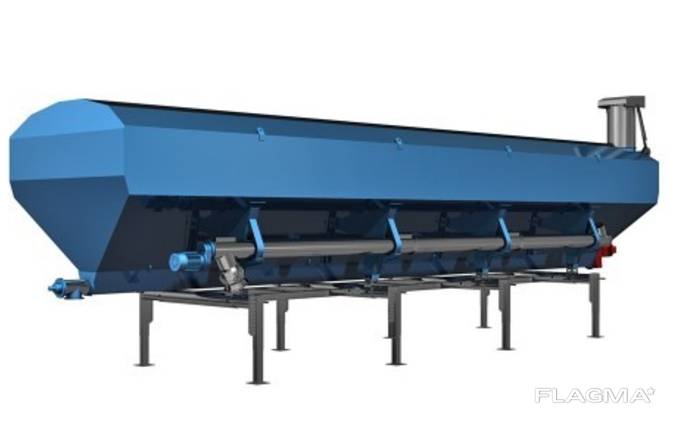

Cement silo mobile SUMAB Sweden

60-ton Horizontal Cement Silo

Technical Specifications:
1. 60-ton segmented cement silo with all necessary equipment – ​​silo top filter, level gauges, sprayers, ladders, and filling pipe.

Specifications:
Capacity: 60 tons
Wall thickness: 4-6 mm
Filling pipe: 4 inches

Cement silo dimensions:
Length: 11,955 mm
Width: 2,258 mm
Height: 2,700 mm, with the top filter in the transport position and without legs
Height: 4,815 mm, when calculated with legs and the top filter installed for use
3,865 mm, with the legs and top filter in the transport position and without legs

Silo Equipment:
1 set
Silo pressure valve: WAM (Italy)
Level indicators: ILTC220 (top and bottom), WAM (Italy)
Fluidizing nozzle: U025, 6 units per silo, WAM (Italy)
Mechanical valve: V2FS300S, WAM FR
Filter regulator: 1/2 220 volt, solenoid valve
Pneumatic system pipes.

Silo filter: 1 pc.
Filtration area: 24.5 m²
Number of filter cartridges: 7 units
Air filtration flow: 2200-2500 Nm³/hour.
Filter diameter: 800 mm, body thickness: 1 mm
Electronic control system.

Unloading auger
Dimensions: 193 x 8000 mm
Motor power: 7 kW
Capacity: 22 tons/hour
Manufacturer: WAM (Italy)
Universal inlet.

12-month warranty.

SUMAB representative offers high-quality equipment at factory prices, without intermediaries.

The company provides a full range of services, including delivery, commissioning, and maintenance.
