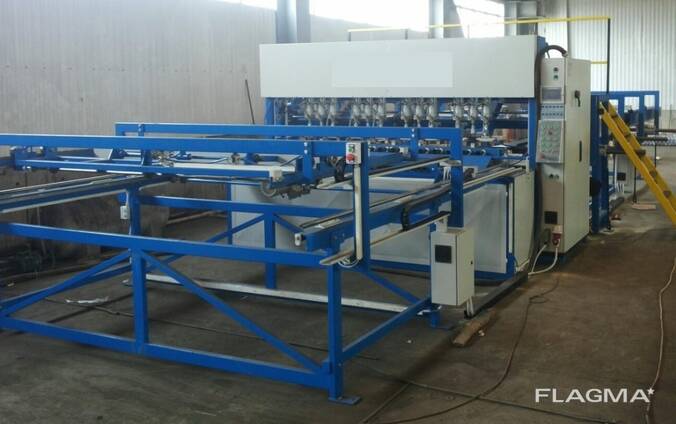

Machine for welding reinforcing mesh rod/rod VM 24

VM 2400/6-12 (Sweden) Reinforcement Mesh Welding Machine (Rod/Rod).

The offer consists of:

Long rebar insertion unit: 1 unit
Welding unit: 1 unit
Welding unit: 1 unit

Long rebar insertion unit

Structure: The structure is made of welded steel.

Drive: Electric
Power: 2 kW
Unit dimensions: 3200 x 2600 x 1150 mm
Unit weight: 1000 kg
Number of rebar housings: 24

Welding unit

Structure: welded steel
Cylinders: pneumatic
Number of electrodes: 24
Number of transformers: 12
Transformer power: 130 kVA
Step length: 100, 150, and 200 mm
Adding a crossover wire: Manual dispenser
Welding unit dimensions: 2900 x 2500 x 2000 mm

Exit section

Structure: welded steel
Drive type: servo motor
Power: 5 kW
Maximum width: 2400 mm
Maximum length: 6000 mm
Block size: 30000 x 7200 x 1500

Technical specifications

Wire diameter, mm: 6-12

Mesh length, mm: 6000

Mesh width, mm: 2400

Number of electrodes: 24

Longitudinal pitch, mm: 100, 150, 200

Cross pitch, mm: 50-400, adjustable via software

Machine control: PLC

Transformers: 12

Transformer power, kVA: 130

Number of welding cycles/min. 40-60

Operating Mode

1. All at once

2. Individual

Power, V 3x380

Electrode Cooling: Water

Water Flow Rate, L/min 30-45

Air Flow Rate, m³/min 3.5-5

Air Pressure, Bar 6-10

Longitudinal Wire Addition: Manual, Semi-Automatic

Cross Wire Addition: Magnetic Dispenser

Finished Mesh Receiving Unit: With Lever

Minimum Working Area: 7x35 m

Machine Speed

6*150x150 60 cycles/min

12*150x150 20-30 cycles/min

Speed ​​depends on welding type and current power.

Option: Turning and Stacking Unit:

Structure: Made of welded steel
Rotating Type: Electric Motor
Power: 5 kW
Maximum width: 2450 mm
Maximum length: 6000 mm

12-month warranty
